    Mirror Finish Automatic Deburring Machine / Stainless Steel Square Pipe Polishing Machine

    Ask Lasest Price
    Brand Name : ZTPolish
    Model Number : ZTD
    Certification : CE.ISO9001.ISO14001
    Price : US $1,000-10,000 / Sets | 1 Set/Sets (Min. Order)
    Supply Ability : 3 Sets per month
    MOQ : 1 set
    • Product Details
    • Company Profile

    Mirror Finish Automatic Deburring Machine / Stainless Steel Square Pipe Polishing Machine

    Mirror Finish Automatic Deburring Machine / Stainless Steel Square Pipe Polishing Machine


    1. Processing objects and requirements:


    1.1 Purpose: The equipment is mainly used for polishing and buffing stainless steel square tube and bars

    2.2 The workpiece range requirements:

    ItemsDimension
    Length x width6000x1000mm
    Sheet thickness10-200mm

    2.Technical Parameters:


    Buffing wheel motor pow

    er

    25kw
    Workinghead feeding motor power4kw
    Spindle speed0-2800r/min
    Work efficiency1-6m/min
    Size75000x2000x1800mm
    RoughnessRa<0.1um
    Power supply380v/50HZ (customised)
    Avaliable materialsFor metal with different size
    Avaliable rangeAccording to your requirements
    Avaliable buffing materialsAbrasive belt/buffing wheel

    Mirror Finish Automatic Deburring Machine / Stainless Steel Square Pipe Polishing Machine


    Mirror Finish Automatic Deburring Machine / Stainless Steel Square Pipe Polishing Machine

    Mirror Finish Automatic Deburring Machine / Stainless Steel Square Pipe Polishing Machine


    Mirror Finish Automatic Deburring Machine / Stainless Steel Square Pipe Polishing Machine

    3.Suitable grinding and polishing material:

    Belt size: 1000 × 1220mm


    3.1 Abrasive belt:

    Mirror Finish Automatic Deburring Machine / Stainless Steel Square Pipe Polishing MachineMirror Finish Automatic Deburring Machine / Stainless Steel Square Pipe Polishing Machine

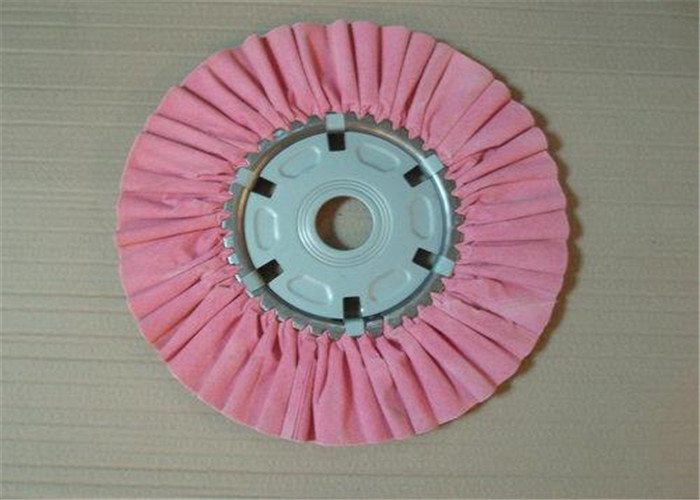

    Buffing wheels:

    Mirror Finish Automatic Deburring Machine / Stainless Steel Square Pipe Polishing MachineMirror Finish Automatic Deburring Machine / Stainless Steel Square Pipe Polishing Machine

    Mirror Finish Automatic Deburring Machine / Stainless Steel Square Pipe Polishing MachineMirror Finish Automatic Deburring Machine / Stainless Steel Square Pipe Polishing Machine


    3.2 Surface Finish:

    1. Ra≤0.1um and very good mirror finish.

    2. hairline finish(Broken lines or snow line)


    4. Advanages:


    1

    The automatic machine is an exclusive polishing and buffing system consisting 1-2 working stations; high flexibility and high product efficiency.


    2

    With PLC control system for high precision of control and high stability of move technology.


    3Software: Programmable, with protable handed device, contains manually mode to simulate the workmanship polishing and record the track; automatically operating model is available with pre-settled parameters program
    4Polishing pressure and wear compensation control performance: When the polishing wheel is worn out, the system can detect that the torque becomes smaller and automatically the compensation in all directions.
    5

    Linear speed compensation: When the outer diameter of the wheel is reduced, the system automatically increases the speed and compensation;


    6

    Solid or liquid polishing wax, to set up the wax spraying cycle time, frequency.


    7

    Full digital control, polishing program parameters can be saved and adjusted at any time.


    8

    CN/EN language display on Touch Panel. to set all parameters for an easy operation;fault codes display and alarm pages for quick troubles shooting and repair



    Please contact us for more specifications with your inquiry today! Our honor to sever you with our best service and highest quality.


    The firm was created in 2007 in HeFei City(Anhui Province), specializing in the manufacture of automatic and CNC machines for sanding and polishing.
    Since its founding, solutions have been offered to the needs of customers, incorporating new technologies with a constant R & D & I, and the suitability of the equipment to the safety standards "CE".
    Today ZTPolish has the trust of its clients in 30 countries, providing grinding polishing and deburring solutions for customers around the world based on the needs and experience of the Chinese market.
    We offer an unequaled line of equipment allowing us to meet the needs of various sectors: automotion, aeronautics, electrical appliances and household articles, construction(aluminum profiles, locks ...); finishing plate, tube; micro-finishing, deburring, ...
