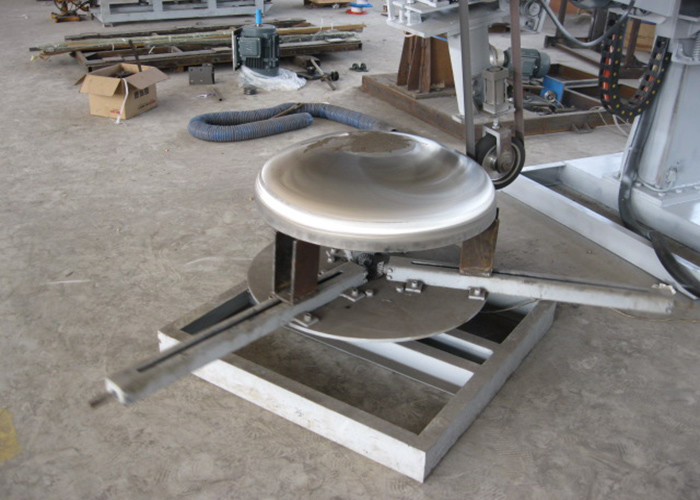

Automatic metal polishing machine for dished head
Product Description
The equipment is dedicated to all types of head, the inner and
outer surface of coarse grinding, hairline and mirror polishing
machine. According to the requirements of the design of different
forms of grinding head.The machine is used for grinding and
polishing all kinds of stainless steel products by using sand belt,
thousand impeller, fiber wheel, and flax wheel etc
Application
1, The equipment can used for all kinds of oval head, butterfly
head, tapered head, spherical head, flat head
2, It can used for chemical, food, biological, water treatment,
pharmaceutical, dyeing and finishing, pressure vessels and other
fields
| Product name | Dished head polishing machine |
| Model | ZT-701 |
| Final finish requirement | Mirror finish;hairline;matt |
| Processing diameter range | 500-3000mm |
| Grinding head motor power | 4KW;5.5KW |
| Draving motor power | 0.37KW;0.75KW |
| Workpiece rotation | 0.75-3KW |
| The length of abrasive belts | 1880*50mm |
| Applicable abrasive materials | belts,flap wheel,flax wheel,cloth wheel |
| Buffing wheel size | 300*50*32mm |
| Power supply voltage | AC three-phase 380V |
| Air Supply | 0.2-0.6MPa |
All parameter listed in this table is only to supply reference,all
dimensions is based on real solids.
Specifications of Automatic metal dished head polishing machine :
A), Polishing machine is used for polishing and buffing the
stainless steel seal head, ellipsoidal head ,Butterfly head.
B), It is also called abrasive finishing machine,buffing machine,
Application of the polish machine :stainless steel tank,vessel ,
seal head ,ellipsoidal
head ,Butterfly head inside or outside from 20-1200 mesh ,with
mirror polished .
C), Specification of the polish machine :
D), Diameter:1000 - 8000 mm.
E), Machinery
Feature of Automatic metal dished head polishing machine :
1. Using cloth emery disc , low cost and high efficient ,mirror
polished .
2. Frequency speed control ,high quality .
3. Roughness as 0.1 um.
4. Speed : 8 m2/hour .
5. Machinery.
Automatic metal dished head polishing machine advantages:
1, Easy-handing and safety.
2, Advantage design.
3, Almost full automatic control.
4, Equality heat and good heat distribution.
5, Durable and reliable.
6, Machinery.
Our Services:Engineers available to service machinery overseas
We are looking for the agents in diffrent country. If you have
interest, plz contact me.
Main products
Tank polishing machine
Dished head polishing machine
Dual-use tank and seal head polishing machine
Plane polishing machine
Kitchenware polishing machine
Bent pipe polishing machine
Square pipe polishing machine
Round pipe polishing machine
Sand belts polishing machine'
Self-automatic polishing machine
After mirror polished
