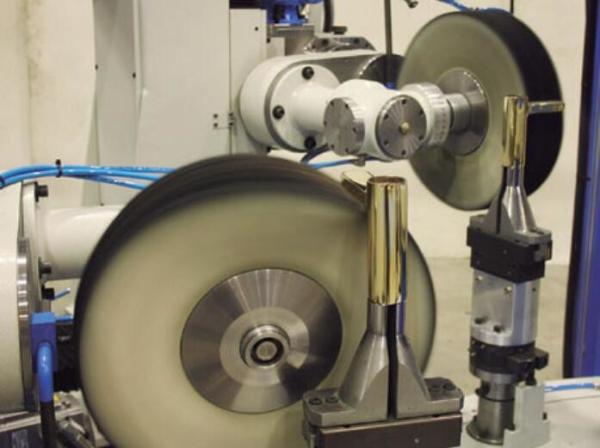

Robot Operation CNC Polishing Machine , Automatic Grinding Machine
For Auto Parts Metal
APPLICAITONS
Robot operation faucet sanitary ware , auto parts metal ,lockset
and doorknob,thread processing grinding and polishing machine.
1.1 Built-in professional polishing program module
1.2 Programming mode: the program of the demonstrator is
programmed. Manual mode is adopted to simulate manual polishing and
record track, which can be automatically run according to this
path.
1.3 Full digital control, the program can be saved and invoked at
any time.
1.4 The functions and parameters are set by the Chinese display
touch control panel, which is easy to operate and has the function
of fault code display for troubleshooting and maintenance.
Accurate and constant pressure control with high-speed response
(~10ms)
Quick design by using a 3D-laser-scanner to determine the Robot
polishing path
Auto abrasive compensation for the buffing wheel
Micro-adjustment of the buffing path via the pressure control
mechanism
Customized control equipment such as Robot, CNC or Motion,
according to user’s budget
1. One robot, belt machine and a polishing machine are formed, the
turntable performs the displacement coordination, the conveyor belt
carries out the piece transfer, and the polishing process of the
product is fully automated, which is a combination of calibration,
production and detection, and has high flexibility and highness.
Efficiency, high flexibility, low cost and so on. Due to the
effective use of dual robots, grinding and polishing can work in
parallel.
2. During the working process of the robot, the workpiece can be
automatically exchanged, and the grinding and loading and unloading
of new and old workpieces can be performed in parallel. It has the
characteristics of short swing time, reliable performance and
safety. It realizes loading and unloading of workpieces, shortens
the downtime of grinding and improves production efficiency. In
addition, the structure is highly flexible, reducing the loading
and unloading time and making grinding more efficient. To replace
the fixture, you only need to replace the entire tray.
3. With a good design of the workpiece positioning tray and the
design of the robot quick change fixture, it can process various
hardware efficiently. 4.Different workpiece products only need to
replace the robot end clamp and the turntable loading and unloading
tray, and the replacement time is less than 10 minutes. The system
has offline programming function, which can offline programming the
replaced products to be processed, improve the grinding quality and
reduce the scrap rate without affecting the normal production.
5. The automatic grinding system adopts the belt machine with
variable frequency speed regulation. The belt angle has
manual/automatic adjustable mechanism, and the quick belt
tensioning and adjusting mechanism is practical and convenient. The
system uses an ultra-wide belt and uses a direct motor drive design
to reduce belt change, improving maintainability, reducing human
intervention and improving automation.
6. The iron filings generated by grinding can be discharged in time
through the system, reducing the operation time of manual cleaning
and reducing the operation risk, improve equipment efficiency.
