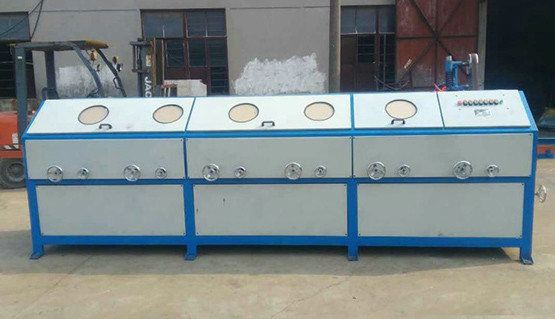

Automatic polishing machine for tubes
Detailed products informations:
The machine dedicated to all kinds of round and elbow pipe, outer
surface rough grinding, hairline and mirror finish. According to
the requirements of the design of different forms of grinding head,
The machine is used for grinding and polishing all kinds of
stainless steel , aluminum alloy , and copper products by using
abrasive belt , flap wheel, nonwovens wheel, and cloth wheel with
wax etc.
| polishing range in millimeter | 9-50.8mm,50.8-114mm |
| polishing lenght range in meter | 2.5m-6m |
| polishing speed | 1.2-12mm/min,1.2-10mm/min |
| polishing rough in Ra | Ra0.1 |
| polishing head speed | 2500r/min |
| feed motor | 600-300r/min,98-50n.m / 40-200r/min,147-74n.m |
| pnuematie pressure range | 0.2-0.6MPa |
| hydraulic pressure range | 0.1-0.5MPa |
All parameter listed in this table is only to supply reference,all
dimensions is based on real solids.
Functions:
a) The height and angle of rollers are adjustable,can satisfy kinds
of specification.
b) Adopts hyperboloid roller design which can improve the surface
and roundness of tubes.
c) Six durable alloy tool steel rollers.
d) Easy to operate.
f) Automatic polishing machine for tubes
Feature of the polishing machine :
1. Using cloth emery disc , low cost and high efficient ,mirror
polished .
2. Frequency speed control ,high quality .
3. Roughness as 0.1 um.
4. Power supply: Triphase 380V,50Hz..
5. Rated power: 1.5kw.
6. Applicable tube diameter:5mm-21mm ( over this range can be
custom-made ) .
7. Applicable tube lenght : over 250mm.
8. Automatic polishing machine for tubes
Machine advantages:
1 Easy-handing and safety.
2 Advantage design.
3 Almost full automatic control.
4 Equality heat and good heat distribution.
5 Durable and reliable.
6 Automatic polishing machine for tubes
Main products
Tank polishing machine
Dished head polishing machine
Dual-use tank and seal head polishing machine
Plane polishing machine
Kitchenware polishing machine
Bent pipe polishing machine
Square pipe polishing machine
Round pipe polishing machine
Sand belts polishing machine'
Self-automatic polishing machine
If you interest in our products or have any questions,pls do not
hesitate to let me know asap.
