1 Processing objects and requirements:

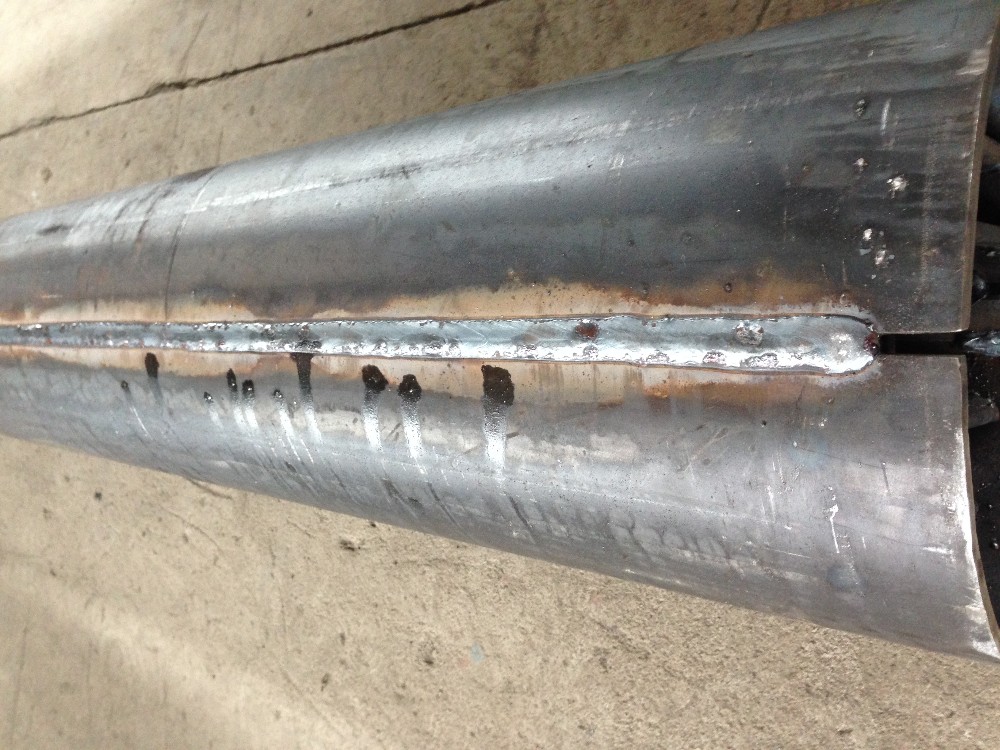

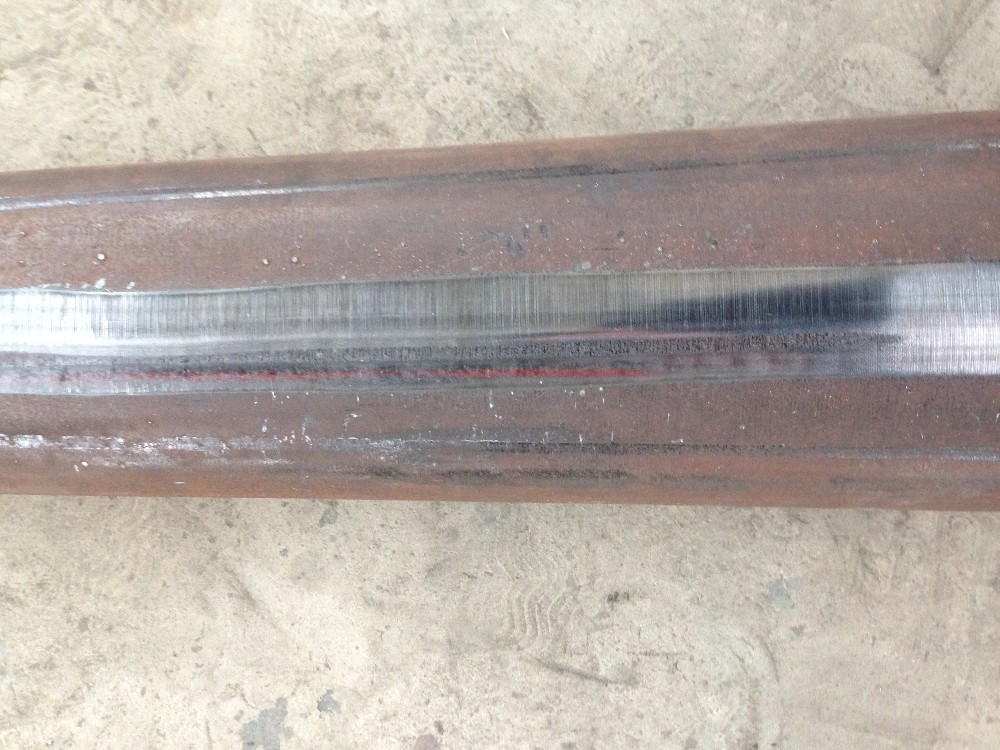

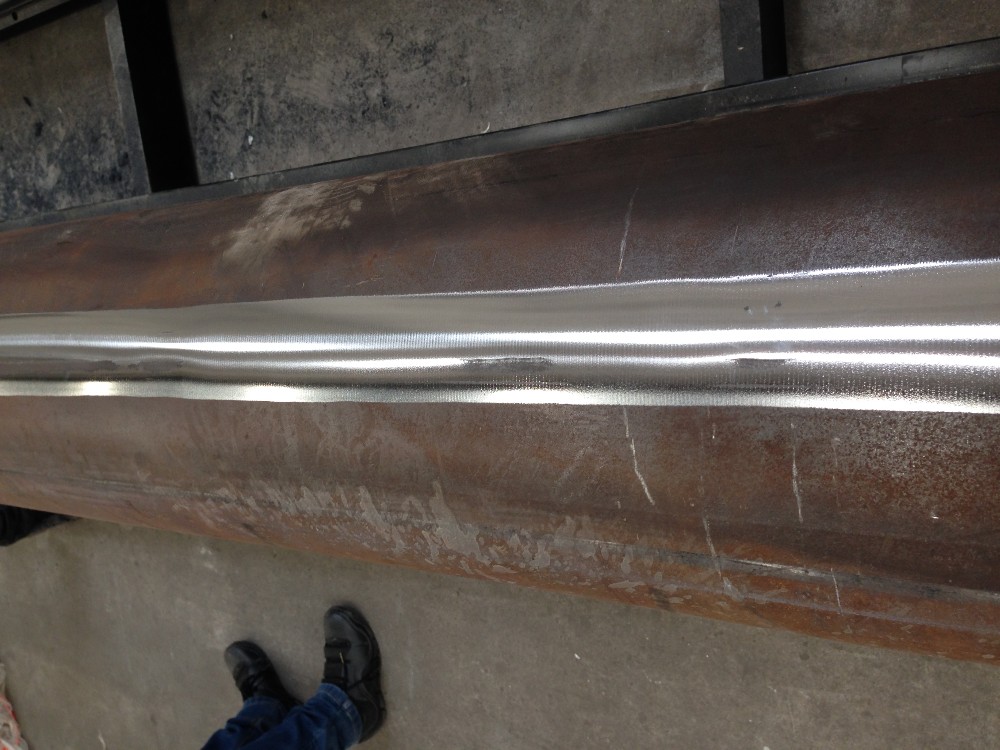

1.1 Purpose: The machine is mainly used for grind welded-parts of carble steel.It can grind the surplus height of seam and cleam the welding slag.

2.2 The workpiece range requirements:

workpiece diameter range: 100mm ~ 600mm;
horizontal polishing length: ≤6000mm

2 Main technical parameters:
2.1. Polishing Motor power: 4kw
Belt size: 1880 × 50mm
Buffing wheel size:300*50*32mm
2.2 Polishing efficiency: 1-3m/min (Adjusting)
2.3 Power: AC three-phase 380V; 50HZ; Input power 11kw
2.4 The gas source:. 0.6 m³/ h ; 0.4 ~ 0 6Mpa;pipe:8x5mm
2.5 Processing noise: ≤75db (2 m measuring distance away from polishing head )

Suitable grinding and polishing material:

We can supply a solution for a polishing process.

Surface Finish:

Ra≤0.8um

One year warranty, can be extended according to customers' requirement.
Overseas third-party support available.
Engineer available to service machinery overseas.

Welcome to be our international agents and distributors!
We are manufacturer of polishing machines for all metal products,
welcome to your inquiry and visiting!

Tank polishing machine
Dished head polishing machine
Dual-use tank and seal head polishing machine
Plane polishing machine
Kitchenware polishing machine
kitchen sinks polishing machine
Bent pipe polishing machine
Square pipe polishing machine
Round pipe polishing machine
Sand belts polishing machine
Car hubs polishing machine
Self - automatic polishing machine
Matching products for polishing process
