Metal polishing machine Automatic control for Tank top head and
cone
Detials of polishing machine
Specifications of Metal automatic seal head polishing machine :

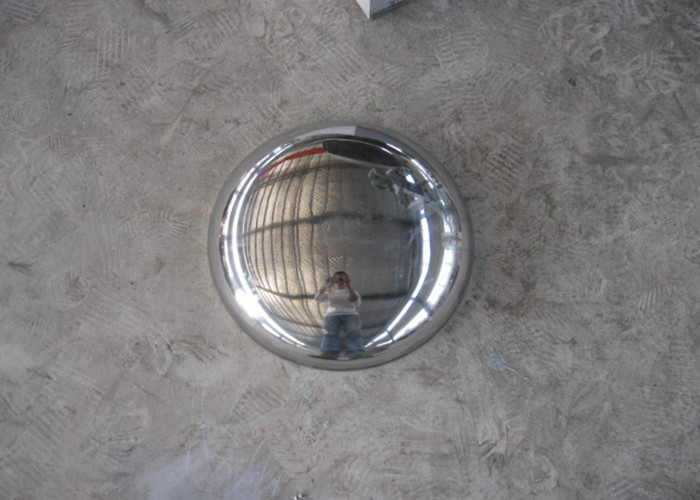

A), Polishing machine is used for polishing and buffing the
stainless steel seal head, ellipsoidal head ,Butterfly head.
B), It is also called abrasive finishing machine,buffing machine,
Application of the polish machine :stainless steel tank,vessel ,
seal head ,ellipsoidal head ,Butterfly head inside or outside from
20-1200 mesh ,with mirror polished .
C), Specification of the polish machine :
D), Diameter:1000 - 8000 mm
Feature of Metal automatic seal head polishing machine :
1. Using cloth emery disc , low cost and high efficient ,mirror
polished .
2. Frequency speed control ,high quality .
3. Roughness as 0.1 um.
4. Speed : 8 m2/hour
All parameter listed in this table is only to supply reference,all
dimensions is based on real solids.
Metal automatic seal head polishing machine advantages:
1, Easy-handing and safety.
2, Advantage design.
3, Almost full automatic control.
4, Equality heat and good heat distribution.
5, Durable and reliable.
Main specification
| Product name | Dished head polishing machine |
| Model | ZT-701 |
| Final finish requirement | Mirror finish;hairline;matt |
| Processing diameter range | 500-3000mm |
| Grinding head motor power | 4KW;5.5KW |
| Draving motor power | 0.37KW;0.75KW |
| Workpiece rotation | 0.75-3KW |
| The length of abrasive belts | 1880*50mm |
| Applicable abrasive materials | belts,flap wheel,flax wheel,cloth wheel |
| Buffing wheel size | 300*50*32mm |
| Power supply voltage | AC three-phase 380V |
| Air Supply | 0.2-0.6MP |
| Application | Dished head,tank top.cone outside and inside polish |
| Model | ZT-701 |
| Size | 3000*3600*1500mm |
Main products
Tank polishing machine
Dished head polishing machine
Dual-use tank and seal head polishing machine
Plane polishing machine
Kitchenware polishing machine
Bent pipe polishing machine
Square pipe polishing machine
Round pipe polishing machine
Sand belts polishing machine'
Self-automatic polishing machine
FAQ
Q: Are u factory?
A: We have been the manufacturer of metal polishing machine for 7
years.
Q: What's your feature?
A: We study in producing the metal polishing machine always and
only.
Q:What's your advantages?
A:We are at the top level in metal polishing machine area and have
price and technology advantages. And we are the second factory in
China mainland who begin to manufacture the metal polishing
machine.
